Interaction-Aware Sampling-Based MPC with Learned Local Goal Prediction

Walter Jansma1 Elia Trevisan1 Álvaro Serra-Gómez1 Javier Alonso-Mora1

Abstract

Motion planning for autonomous robots in tight, interaction-rich, and mixed human-robot environments is challenging. State-of-the-art methods typically separate prediction and planning, predicting other agents’ trajectories first and then planning the ego agent’s motion in the remaining free space. However, agents’ lack of awareness of their influence on others can lead to the freezing robot problem. We build upon Interaction-Aware Model Predictive Path Integral (IAMPPI) control and combine it with learning-based trajectory predictions, thereby relaxing its reliance on communicated short-term goals for other agents. We apply this framework to Autonomous Surface Vessels (ASVs) navigating urban canals. By generating an artificial dataset in real sections of Amsterdam’s canals, adapting and training a prediction model for our domain, and proposing heuristics to extract local goals, we enable effective cooperation in planning. Our approach improves autonomous robot navigation in complex, crowded environments, with potential implications for multi-agent systems and human-robot interaction.

Image 1

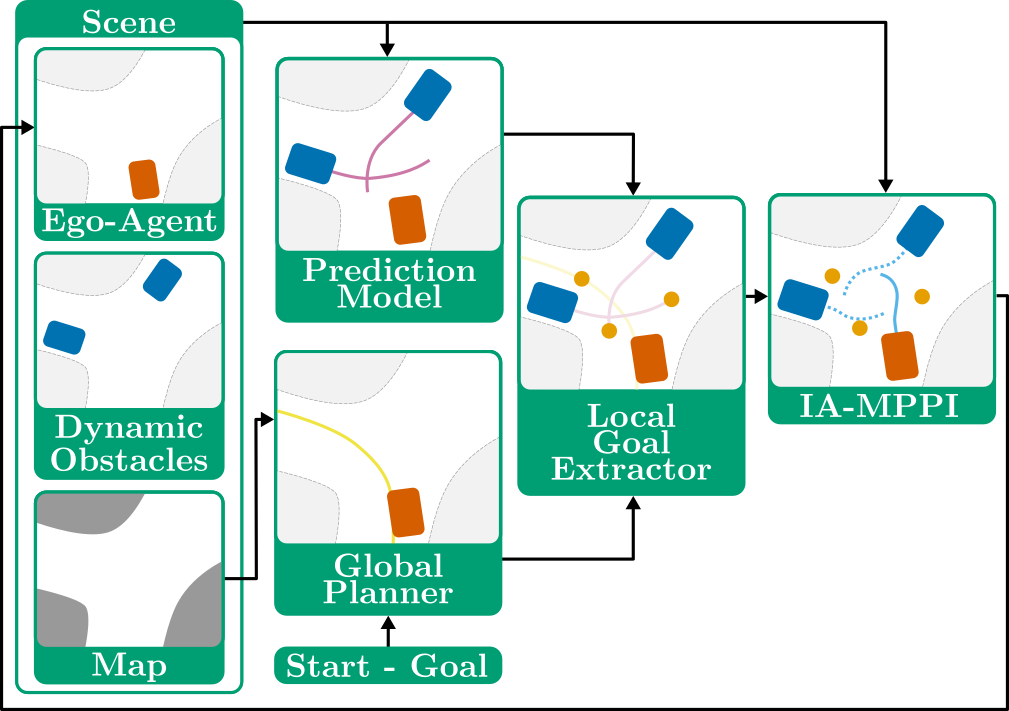

Framework

Firstly, the prediction model utilizes information from all elements in the scene to forecast trajectories for obstacle agents. Meanwhile, the global planner, equipped with the map, start, and goal positions, generates a path for the ego agent. Subsequently, the local goal extractor leverages this information to determine appropriate local goals for the motion planner. With inputs derived from the scene and the local goals, the Interaction-Aware Model Predictive Path Integral (IA-MPPI) algorithm simultaneously plans and predicts input sequences for all agents in the scene. The first input of the sequence is then assigned to the ego agent, and the algorithm iterates.


Sampling-based Model Predictive Control Leveraging Parallelizable Physics Simulations
Corrado Pezzato, Chadi Salmi, Elia Trevisan, Max Spahn, Javier Alonso-Mora, Carlos Hernández Corbato. In Preprint, 2024.

We present a method for sampling-based model predictive control that makes use of a generic physics simulator as the dynamical model. In particular, we propose a Model Predictive Path Integral controller (MPPI), that uses the GPU-parallelizable IsaacGym simulator to compute the forward dynamics of a problem. By doing so, we eliminate the need for manual encoding of robot dynamics and interactions among objects and allow one to effortlessly solve complex navigation and contact-rich tasks. Since no explicit dynamic modeling is required, the method is easily extendable to different objects and robots. We demonstrate the effectiveness of this method in several simulated and real-world settings, among which mobile navigation with collision avoidance, non-prehensile manipulation, and whole-body control for high-dimensional configuration spaces. This method is a powerful and accessible tool to solve a large variety of contact-rich motion planning tasks.
paper image

Multi-Modal MPPI and Active Inference for Reactive Task and Motion Planning
Yuezhe Zhang, Corrado Pezzato, Elia Trevisan, Chadi Salmi, Carlos Hernández Corbato, Javier Alonso-Mora. In IEEE Robotics and Automation Letters (RA-L), 2024.

Task and Motion Planning (TAMP) has made strides in complex manipulation tasks, yet the execution robustness of the planned solutions remains overlooked. In this work, we propose a method for reactive TAMP to cope with runtime uncertainties and disturbances. We combine an Active Inference planner (AIP) for adaptive high-level action selection and a novel Multi-Modal Model Predictive Path Integral controller (M3P2I) for low-level control. This results in a scheme that simultaneously adapts both high-level actions and low-level motions. The AIP generates alternative symbolic plans, each linked to a cost function for M3P2I. The latter employs a physics simulator for diverse trajectory rollouts, deriving optimal control by weighing the different samples according to their cost. This idea enables blending different robot skills for fluid and reactive plan execution, accommodating plan adjustments at both the high and low levels to cope, for instance, with dynamic obstacles or disturbances that invalidate the current plan. We have tested our approach in simulations and real-world scenarios.
paper image

Biased-MPPI: Informing Sampling-Based Model Predictive Control by Fusing Ancillary Controllers
Elia Trevisan, Javier Alonso-Mora. In IEEE Robotics and Automation Letters (RA-L), 2024.

Motion planning for autonomous robots in dynamic environments poses numerous challenges due to uncertainties in the robot's dynamics and interaction with other agents. Sampling-based MPC approaches, such as Model Predictive Path Integral (MPPI) control, have shown promise in addressing these complex motion planning problems. However, the performance of MPPI relies heavily on the choice of sampling distribution. Existing literature often uses the previously computed input sequence as the mean of a Gaussian distribution for sampling, leading to potential failures and local minima. In this paper, we propose a novel derivation of MPPI that allows for arbitrary sampling distributions to enhance efficiency, robustness, and convergence while alleviating the problem of local minima. We present an efficient importance sampling scheme that combines classical and learning-based ancillary controllers simultaneously, resulting in more informative sampling and control fusion. Several simulated and real-world demonstrate the validity of our approach.
paper image

Interaction-Aware Sampling-Based MPC with Learned Local Goal Predictions
W. Jansma, E. Trevisan, A. Serra-Gomez, J. Alonso-Mora. In Proc. IEEE International Symposium on Multi-Robot and Multi-Agent Systems, 2023.

Motion planning for autonomous robots in tight, interaction-rich, and mixed human-robot environments is challenging. State-of-the-art methods typically separate prediction and planning, predicting other agents' trajectories first and then planning the ego agent's motion in the remaining free space. However, agents' lack of awareness of their influence on others can lead to the freezing robot problem. We build upon Interaction-Aware Model Predictive Path Integral (IA-MPPI) control and combine it with learning-based trajectory predictions, thereby relaxing its reliance on communicated short-term goals for other agents. We apply this framework to Autonomous Surface Vessels (ASVs) navigating urban canals. By generating an artificial dataset in real sections of Amsterdam's canals, adapting and training a prediction model for our domain, and proposing heuristics to extract local goals, we enable effective cooperation in planning. Our approach improves autonomous robot navigation in complex, crowded environments, with potential implications for multi-agent systems and human-robot interaction.
paper image

Multi-Agent Path Integral Control for Interaction-Aware Motion Planning in Urban Canals
L. Streichenberg, E. Trevisan, J. J. Chung, R. Siegwart, J. Alonso-Mora. In , in IEEE Int. Conf. on Robotics and Automation (ICRA), 2023.

Autonomous vehicles that operate in urban envi- ronments shall comply with existing rules and reason about the interactions with other decision-making agents. In this paper, we introduce a decentralized and communication-free interaction-aware motion planner and apply it to Autonomous Surface Vessels (ASVs) in urban canals. We build upon a sampling-based method, namely Model Predictive Path Integral control (MPPI), and employ it to, in each time instance, compute both a collision-free trajectory for the vehicle and a prediction of other agents’ trajectories, thus modeling inter- actions. To improve the method’s efficiency in multi-agent sce- narios, we introduce a two-stage sample evaluation strategy and define an appropriate cost function to achieve rule compliance. We evaluate this decentralized approach in simulations with multiple vessels in real scenarios extracted from Amsterdam’s canals, showing superior performance than a state-of-the- art trajectory optimization framework and robustness when encountering different types of agents.

Sampling-Based MPC Using a GPU-parallelizable Physics Simulator as Dynamic Model: an Open Source Implementation with IsaacGym
C. Pezzato, C. Salmi, E. Trevisan, J. Alonso-Mora, C. Hernandez Corbato. In Embracing Contacts Workshop at IEEE Int. Conf. on Robotics and Automation (ICRA), 2023.

We present a method for solving finite horizon optimal control problems using a generic physics simulator as the dynamical model. In particular, we present an open-source implementation of a model predictive path integral controller (MPPI), that uses the GPU-parallelizable IsaacGym simulator as the dynamical model to compute the forward dynamics of the system. This allows one to effortlessly solve complex contact-rich tasks such as for example, non-prehensile manipulation of a variety of objects, or picking with a mobile manipulator. Since there is no explicit dynamic modeling required from a user, the repository is easily extendable to different objects and robots, as we show in the experiments section. This makes this method a powerful and accessible tool to solve a large variety of contact-rich tasks.

Regulations Aware Motion Planning for Autonomous Surface Vessels in Urban Canals
J. de Vries, E. Trevisan, J. van der Toorn, T. Das, B. Brito, J. Alonso-Mora. In Proc. IEEE Int. Conf. on Robotics and Automation (ICRA), 2022.

In unstructured urban canals, regulation-aware interactions with other vessels are essential for collision avoidance and social compliance. In this paper, we propose a regulations aware motion planning framework for Autonomous Surface Vessels (ASVs) that accounts for dynamic and static obstacles. Our method builds upon local model predictive contouring control (LMPCC) to generate motion plans satisfying kino-dynamic and collision constraints in real-time while including regulation awareness. To incorporate regulations in the planning stage, we propose a cost function encouraging compliance with rules describing interactions with other vessels similar to COLlision avoidance REGulations at sea (COLREGs). These regulations are essential to make an ASV behave in a predictable and socially compliant manner with regard to other vessels. We compare the framework against baseline methods and show more effective regulation-compliance avoidance of moving obstacles with our motion planner. Additionally, we present experimental results in an outdoor environment.
